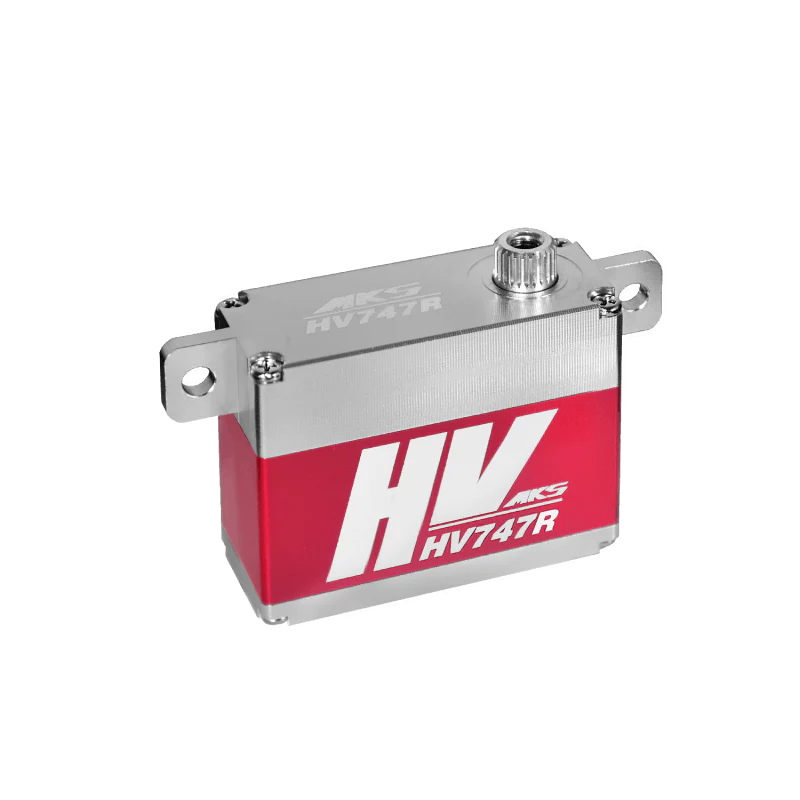

MKS HV747R
MKS HV747R
High Torque Servo for Airplane / Jet / Electric Plane
No. S0022011
Torque (6.0V): 11.8 kg-cm / 163.9 oz-in
Torque (7.4V): 13.8 kg-cm / 191.6 oz-in
Torque (8.2V): 15 kg-cm / 208.3 oz-in
Speed: 0.17 s (6.0V) / 0.14 s (7.4V) / 0.13 s (8.2V)
Weight: 40.07 g (1.41 oz)
Dimension：35.5 x 15 x 28.6 mm
| Stall Current (at locked load) | 2.3A (6.0V) / 2.8A (7.4V) / 3.1A (8.2V) |
| Working Voltage | 6.0V ~ 8.4V DC Volts |
| Working Frequency | 1520μs / 333Hz |
| Dead Band | 0.001 ms (Default) |
| Bearing | 2* Ball Bearing |
| Gear | Metal Alloy Gear |
| Motor | Coreless Motor |
| Wire Length | 29.5 cm |
$119.00
MKS HV747R—
$119.00
