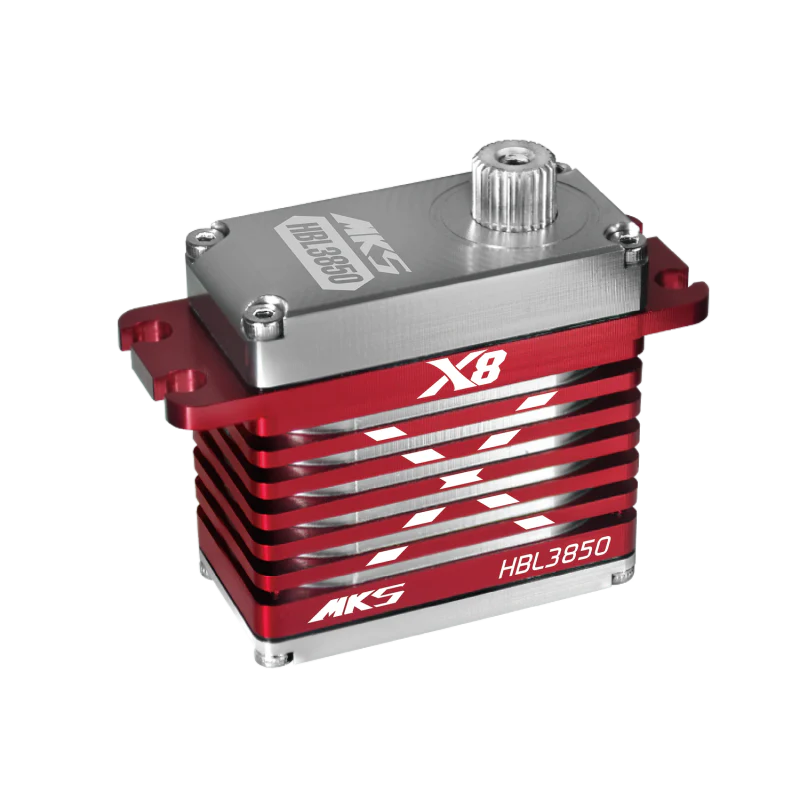

MKS HBL3850

Ultra Torque Servo

• Perfect Servo for large-scale airplanes, jets, and 1/8 and 1/5 scale buggies.
• Ideal for CCPM on a 700~800-class helicopter.
• Ultra torque, incredible efficiency, and low power consumption.
• CNC-Machined Metal Case Design for Exceptional Cooling.
• HD 4096 Resolution, 0.008ms Dead Band.
• Superior Holding Torque, Japanese Brushless Motor.
• Output performance to the top level – smoother, faster, and more efficient.
• Special design for high voltage 2s LiPo operation.
• Extremely strong Chrome-Titanium alloy gear, providing a high level of durability that will survive heavy use.

No. S0010016





 Torque (6.0V): 42 kg-cm / 583.2 oz-in

Torque (7.4V): 51 kg-cm / 708.2 oz-in

Torque (8.2V): 57 kg-cm / 791.5 oz-in

Speed: 0.142 s (6.0V)  /  0.115 s (7.4V)  /  0.104 s (8.2V)

 Weight: 74 g (2.61 oz)

Dimension：40 x 20 x 38.5 mm
Working  Voltage：3.5 ~ 8.4 V DC Volts  (2S Lipo un-regulated)
Working  frequency：1520μs / 333Hz
Dead Band：0.0008 ms (Default)
Bearing：12x8 mm Double bearings
Motor： Japan High Quality Brushless Motor
Gear： Chrome-Titanium alloy gear
Electric current draw： 6.2A max. (8.2V) / 5.8A max. (7.4V) / 4.7A max. (6.0V)
Wire Length：24 cm
