Innoflyer Light module Luna 52mm

Product description and features

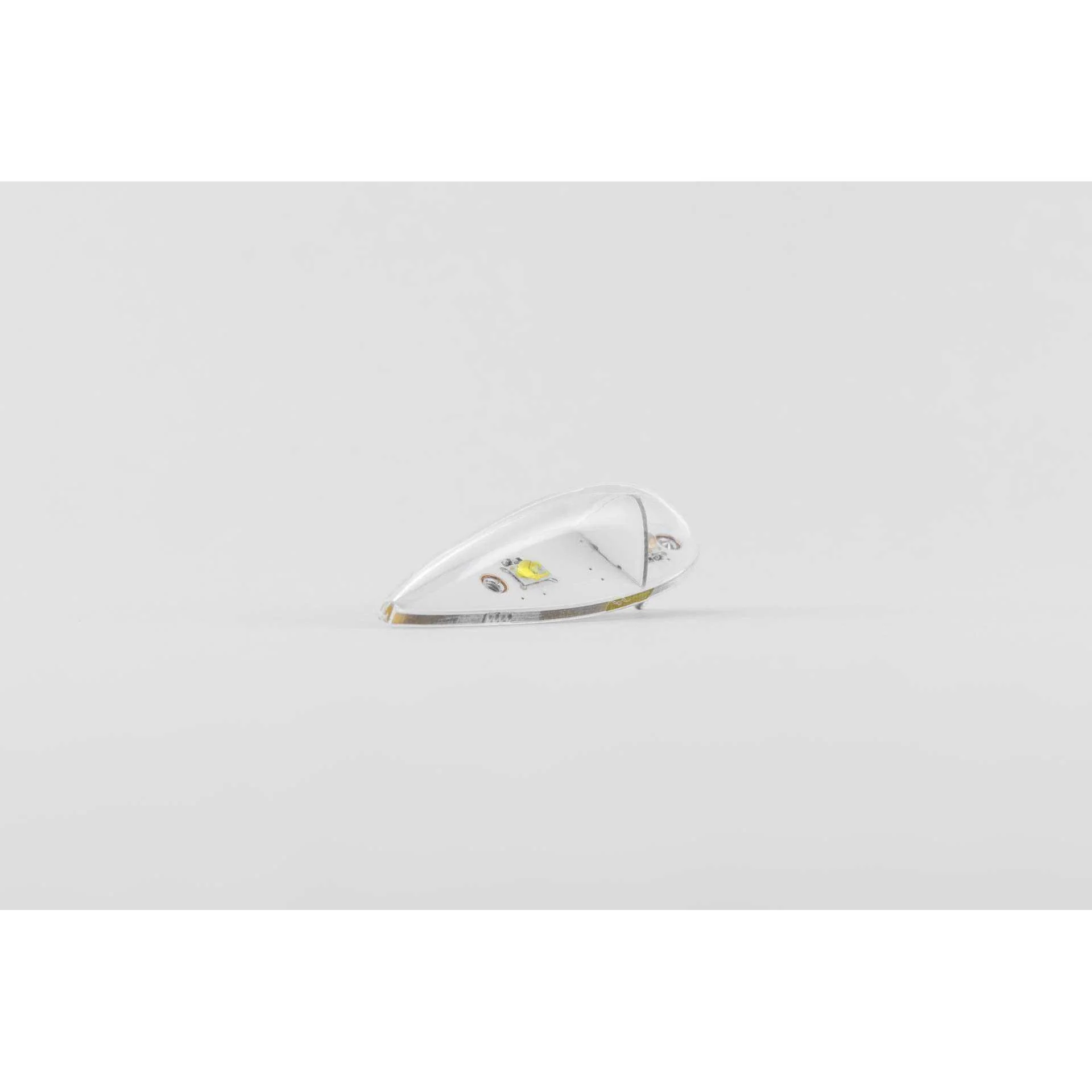

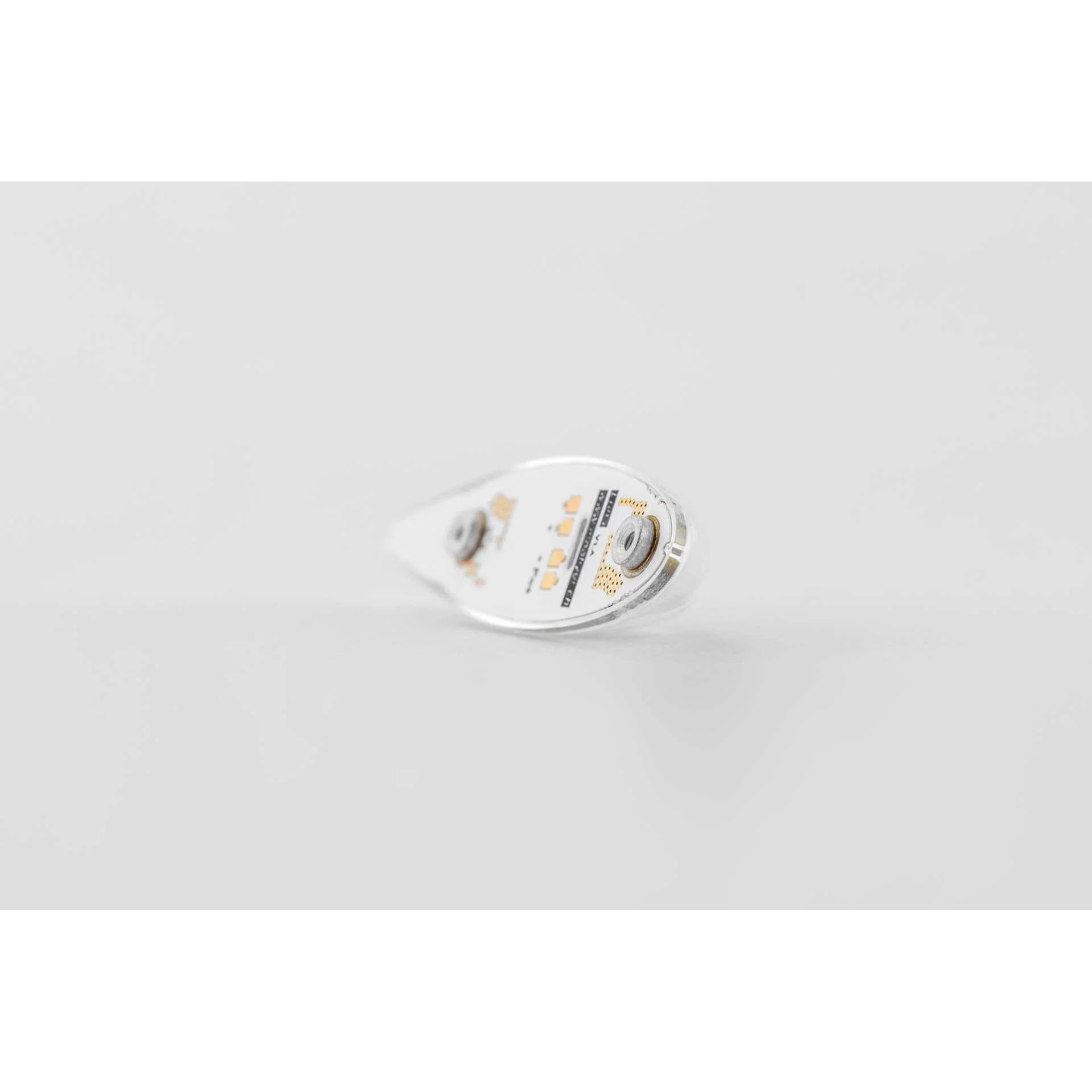

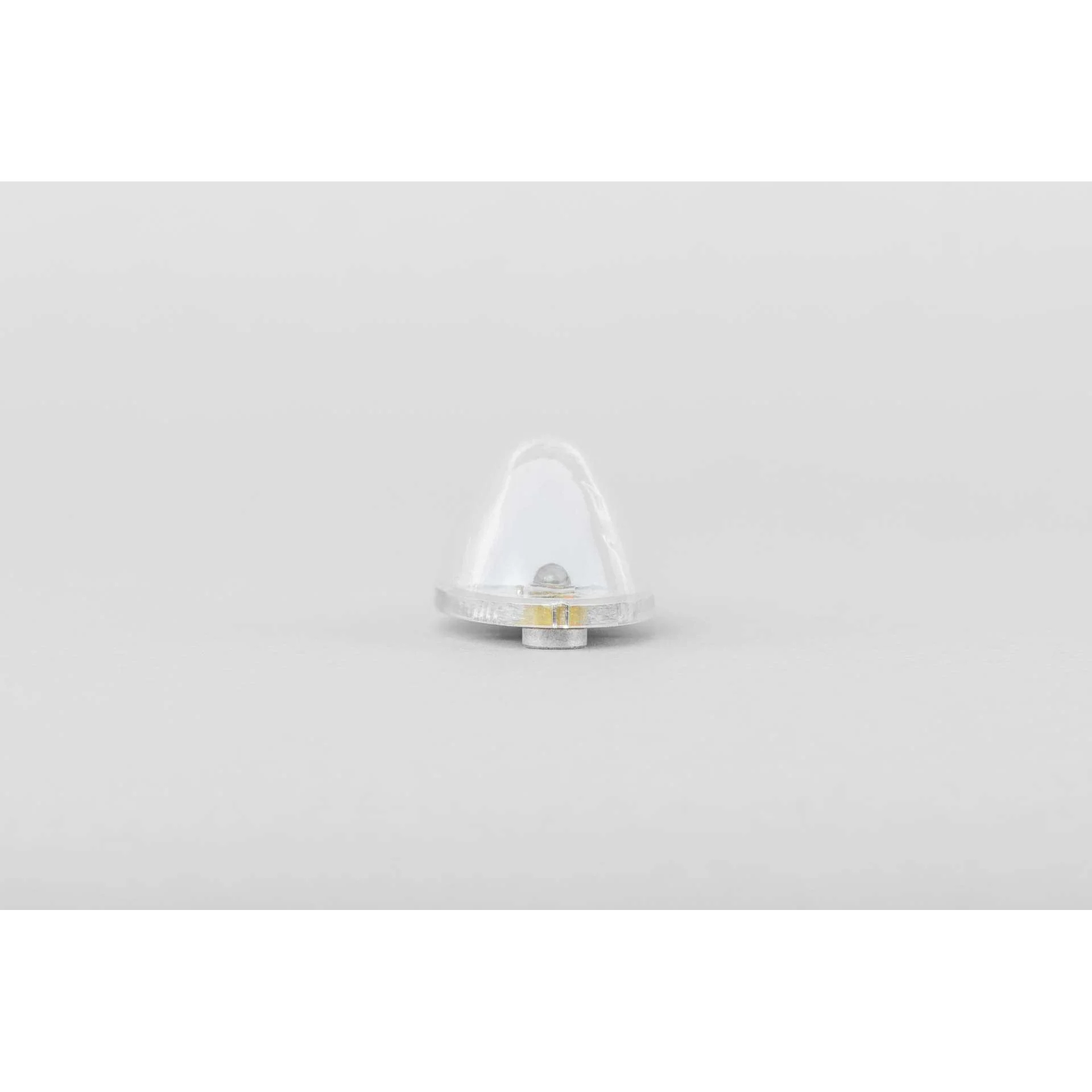

Drop-shaped combination light module in white/green or white/red. for example, used as position and anti-collision lighting (Strobe).

variant Description

• Variant White/Green: For use for example as a green position light and white collision warning light (strobe) in the surface tip on the starboard side (right).
• Variant White/Red: For use for example as a red position light and white collision warning light (strobe) in the surface peak on the port side (left).

connection

The combination light module can be connected directly to two SLC outputs (Smart Light Channel) of the Light Driver 5.0 light control (see accessories). There are no soldering and no series resistors necessary.

  Innoflyer light module Luna 52mm (Dimensions and Connection Drawing).

Intelligent lighting control

• Plug & Play type recognition: The headlamp is automatically detected by the Light Driver 5.0 light control. The light control regulates the luminosity and thus the heat development according to the thermal properties of the headlight housing.
• MLT technology (Maximum Light Tracking): Optionally, the headlamp can be operated with the full light output. An integrated thermal sensor enables the Light Driver 5.0 light control to automatically regulate the light output with high heat generation.

What's on the Box?

1 pc. of the respective variant

 Instruction manual English

Downloads

 Software LightCockpit V2.2 for Windows 64bit

 Software LightCockpit V2.2 for Windows 32bit

 Firmware 2.2 for light control Light Driver 5.0

This firmware is required when expansion modules use SLC Expander.

 LightCockpit V2.1 for macOS
