Innoflyer Headlight  Laura 20mm (Spot)

Product description and features

Square spotlight with clear or fluted optics. For example used as a landing light, taxi or Recognition/WigWag lighting.

Variant Description

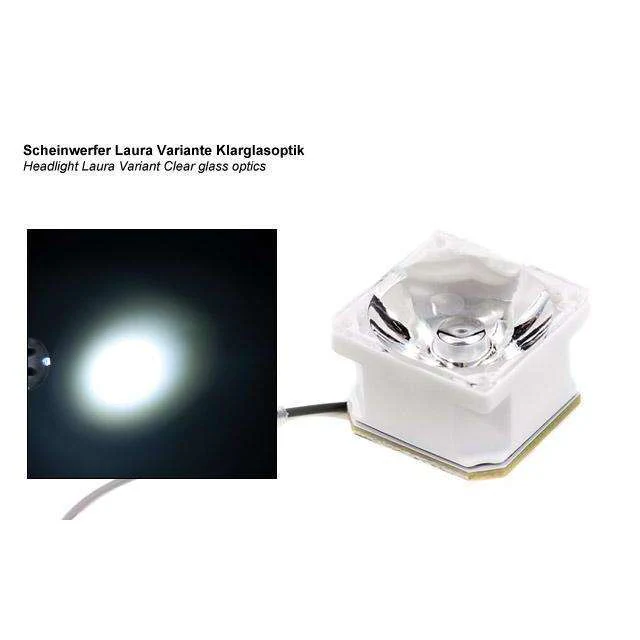

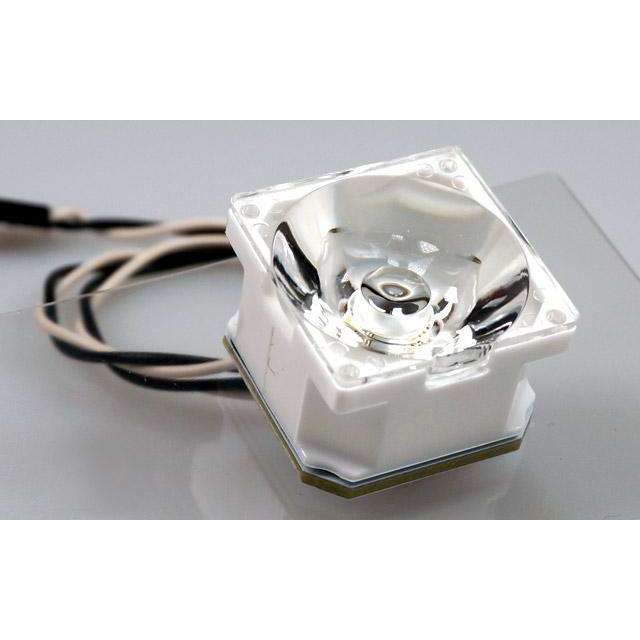

• Clear glass optics: The clear glass optics produces a highly concentrated light emission (spot). Optimal for use for example as a landing light.

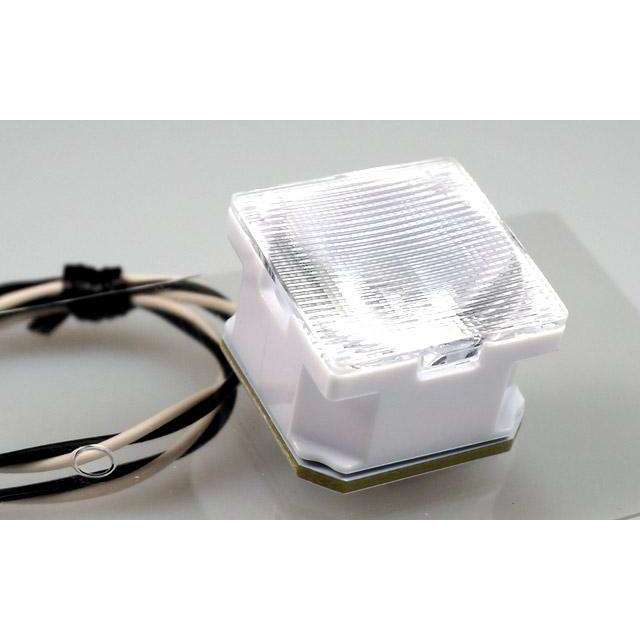

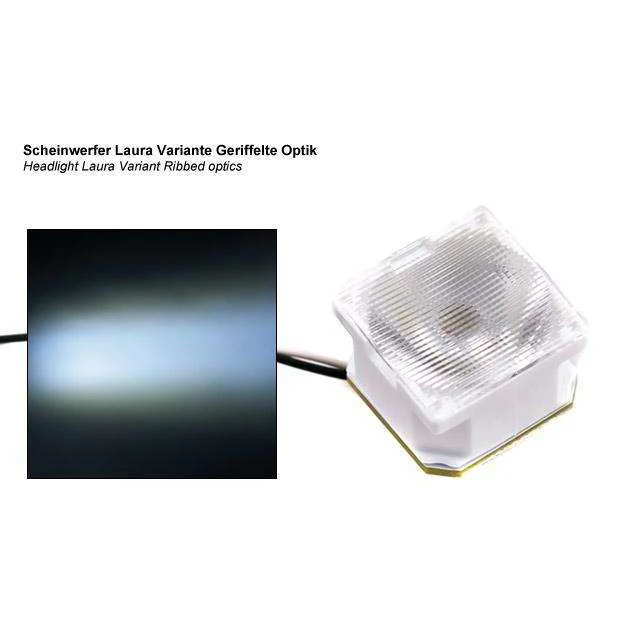

• Fluted optics: The fluted optic produces an oval light emission. Suitable for example as Taxi Light or Recognition / WigWag lighting.

Connection

The headlamp can be connected directly to an SLC (Smart Light Channel) output of the Light Driver 5.0 light control (see accessories). There are no soldering and no series resistors necessary.

  Innoflyer Headlight Laura 20mm (Spot) (Dimensions and Connection Drawing).

• Plug & Play type recognition: The headlamp is automatically detected by the Light Driver 5.0 light control. The light control regulates the luminosity and thus the heat development according to the thermal properties of the headlight housing.
• MLT technology (Maximum Light Tracking): Optionally, the headlamp can be operated with the full light output. An integrated thermal sensor enables the Light Driver 5.0 light control to automatically regulate the light output with high heat generation.

What's on the Box?

1 pc. of the respective variant

 Instruction manual English

Downloads

 Software LightCockpit V2.2 for Windows 64bit

 Software LightCockpit V2.2 for Windows 32bit

 Firmware 2.2 for light control Light Driver 5.0

This firmware is required when expansion modules use SLC Expander.

 LightCockpit V2.1 for macOS
