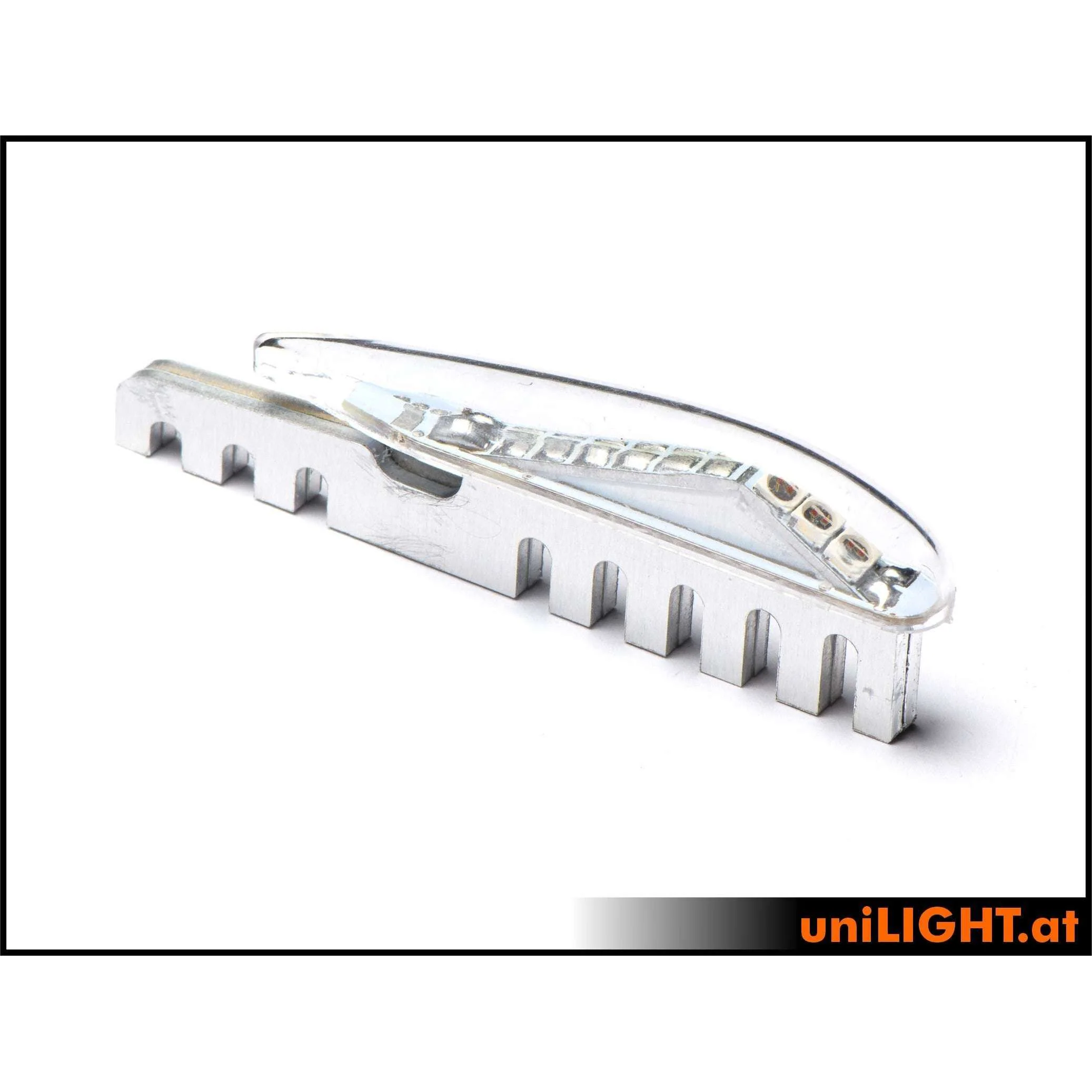

6mm PRO Navigation Light, 3.2Wx2, SHORT

Elektrisch: 3.2Wx2  Light output: ~83 Lumen RED Light output: ~156 Lumen GREEN Light output: ~284 Lumen WHITE Dimensions: 6.6x55, 23mm Weight: 7g (without wires)   Ready to use with 1m connection cable and additional resistor for 3S operation The reference power is a comparison value between our offered lights.

It normally refers to an operating voltage of 12V/3S Lipo and is dependent on bulbs, operating mode and technology.  The luminaire is ready to use for operation with 2S LiPo (ca.

8V).

With 3S (12V), the enclosed resistor has to be added.

Please note that high-performance LEDs can get very hot, up to 70°C is quite normal.

These lamps with heatsink cases are suitable for continuous operation if an air flow (during flight) is possible.

If this is not the case, the duty cycle of 5-10 minutes should not be exceeded. Pay always attention to the operating temperature, we do not assume any warranty in case of overheating.

Note: The LED lights are extremely bright! Never look directly into a LED! TECHNICAL INFORMATION CONNECTION
