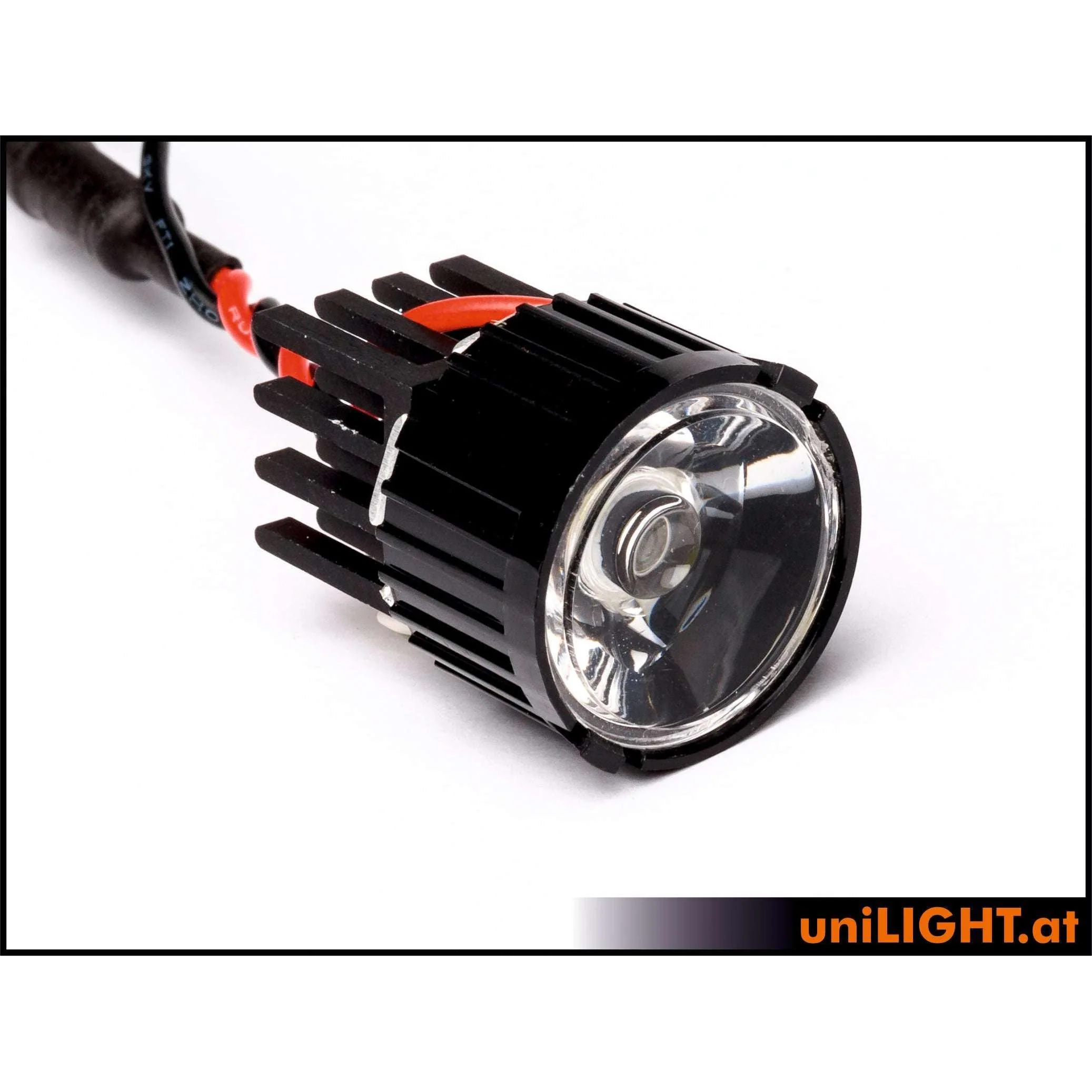

22mm ECO-Spotlight with lens, 8W, T-FUSE

When flying at daylight, every Watt light power counts, the more the better! With increasing performance, the heat loss of the high-performance LEDs increases too.

To allow small dimensions and low weight, we provide most of the strongest lights with an overtemperature protection...

safety counts! Powerful high-performance spotlight in a compact and cheap enclosure.

These spotlights are constructed in such a way that continuous load is possible, because if it gets too hot, the spotlight simply switches off, thus protecting the luminaire and its model against damage.

Nevertheless, please check temperatures after installation.

If constantly operated at the maximum capacity, the life span of the LED is affected.

Direct operation with 2S LiPo (8V).

With 3S (12V), the additional enclosed resistor has to be soldered in or use a 8W adaption cable (accessories).

Performance: 8W reference power Voltage: 8V, use enclosed resistor additionally for 12V! Overtemperature protection: switch-off and clocking of the light at 65-70° Electricity: 0.70A Beam angle: ~60° Light intensity: ~200 Lumen WHITE Light intensity: ~190 Lumen WARMWHITE Dimension: D22x29mm Weight: 9g (without cable) R eady to use with 1m connection cable and additional resistor for 3S operation The reference power is a comparison value between our offered lights.

It normally refers to an operating voltage of 12V/3S Lipo and is dependent on bulbs, operating mode and technology.

Pay always attention to the operating temperature, we do not assume any warranty in case of overheating.

Note: The LED lights are extremely bright! Never look directly into a LED!   TECHNICAL INFORMATION CONNECTION
