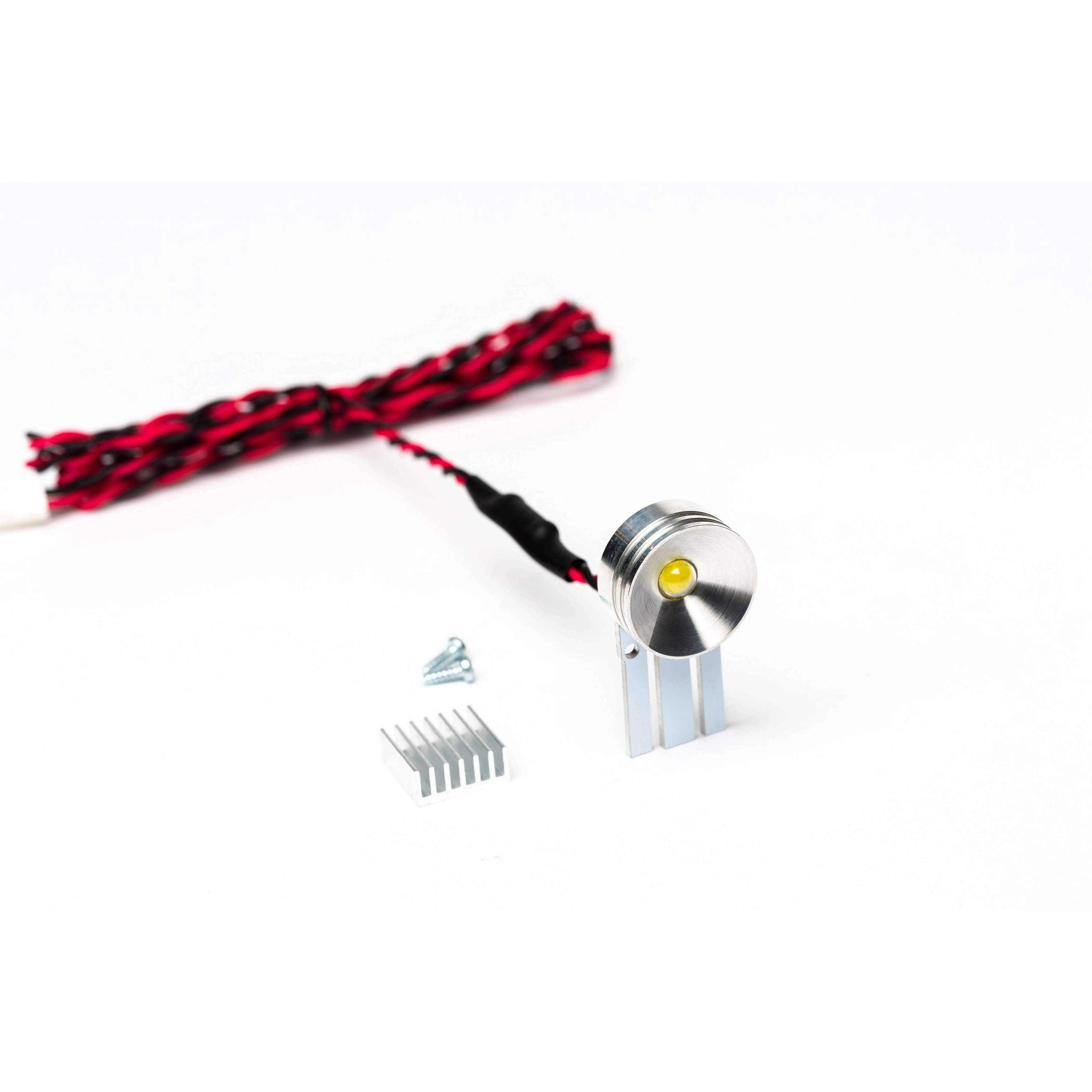

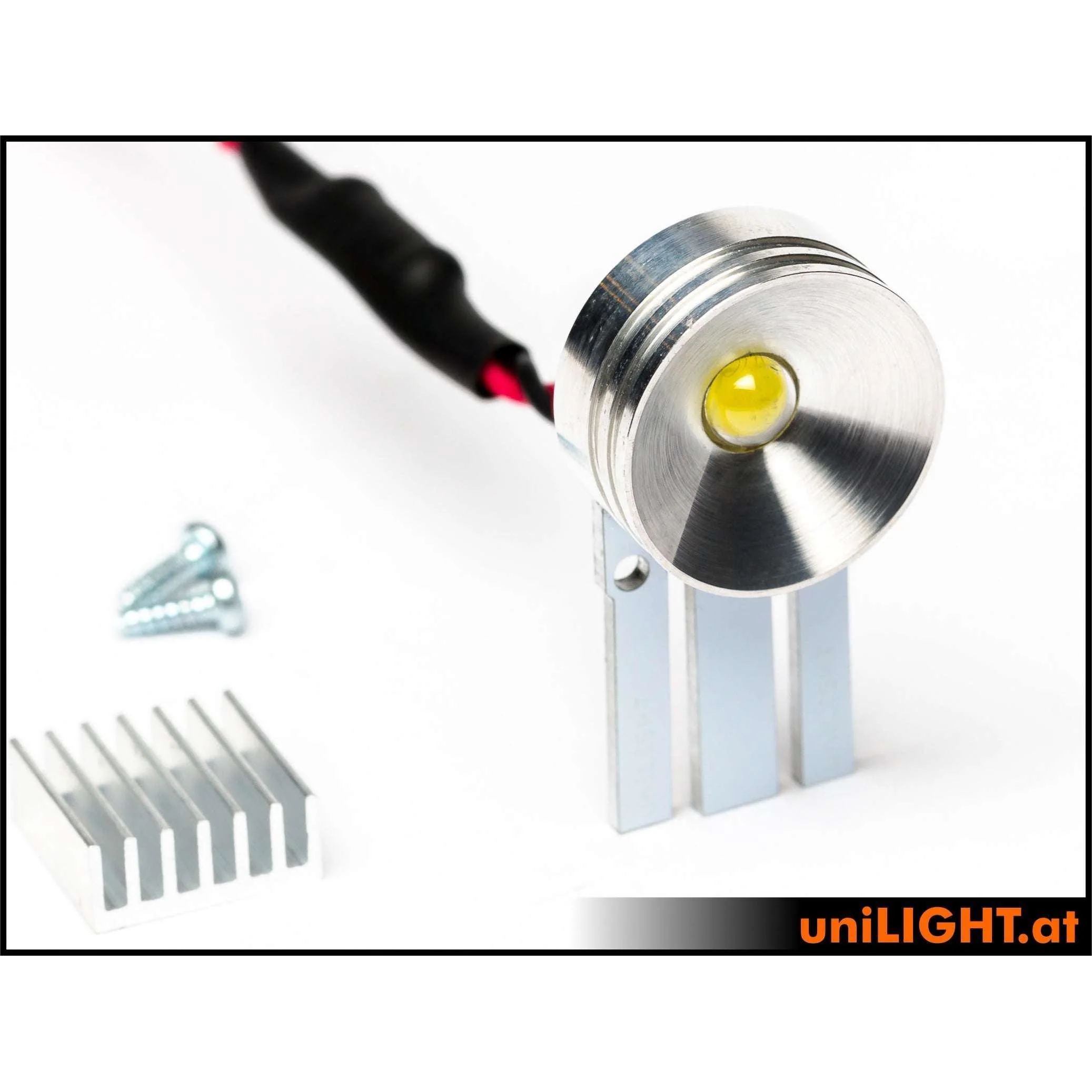

20mm Gear-Spotlight, 8Wx2,SHORT

Flat Ultra-Power spotlight with up to 400 Lumen, CNC manufactured aluminium reflector with 20mm diameter and assembly plate for horizontal cooling.

Ideal on undercarriages or as pop-up spotlights.

The enclosed heatsink should necessarily be glued on for cooling purposes.

It is recommended to directly glue the spotlight on the undercarriage leg with thermal conductive adhesive, then heatsink and mounting flange can be completely removed, so that only the reflector remains.

Attention: tThis Ultra-Power luminaire has no temperature protection, a heat bridge connection to the carrier (undercarriage leg) is highly recommended.

Direct operation with 2S LiPo (8V).

With 3S (12V), the additional resistor has to be soldered in or use a 8W connection cable (accessories).

Please ensure sufficient cooling air during operation.

Performance: 8Wx2 reference power Voltage: 8V, use enclosed resistor for 12V Electricity: 0.7A Beam angle: ~100° Light intensity: ~400 Lumen WHITE Light intensity: ~360 Lumen WARMWHITE Dimension: D20x39x9mm Weight: 7g (without cable) R eady to use with 1m connection cable, heatsink and additional resistor for 3S operation The reference power is a comparison value between our offered lights.

It normally refers to an operating voltage of 12V/3S Lipo and is dependent on bulbs, operating mode and technology.

Pay always attention to the operating temperature, we do not assume any warranty in case of overheating.

Note: The LED lights are extremely bright! Never look directly into a LED! TECHNICAL INFORMATION CONNECTION
